Booking Source: Phone - 365 Management

Booking Source: Phone - 365 Management

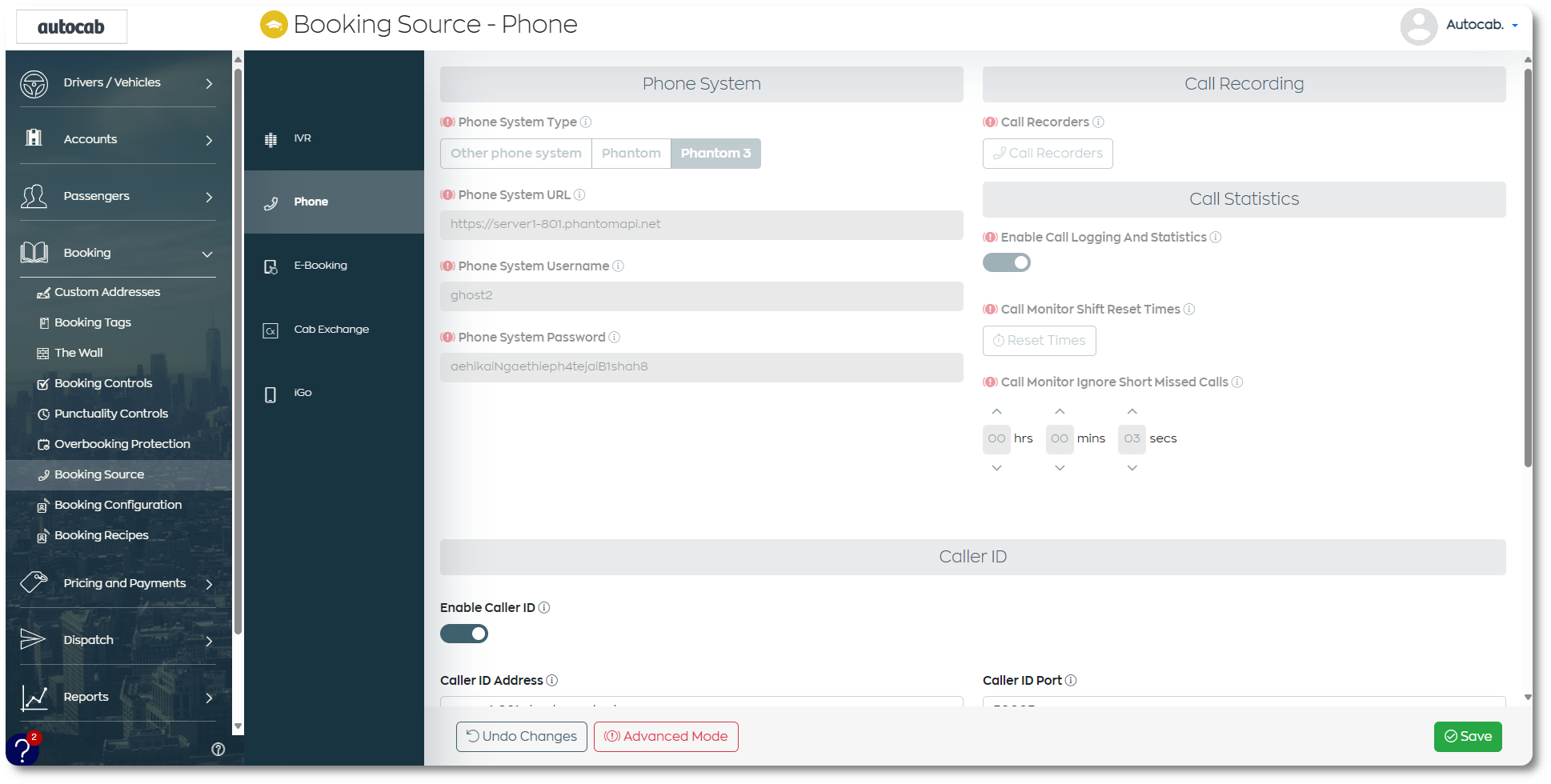

The Phone screen allows you to configure the settings for your Phantom or external phone system.


To access this screen:

  1. Click on IVR from the Booking > Booking Source dropdown menu.

The following settings can be configured:

Note: The following settings are [ Advanced ] and should only be changed by a qualified Autocab engineer.

Phone System

  • Phone System Type: Select which phone system type is being used.
  • Phone System URL: Enter the web address of the phone system's interface.
  • Phone System Username: Enter the username for the phone system.
  • Phone System Password: Enter the password for the phone system.

Call Recording

  • Call Recorders: Enter the details for the call recorder machine so calls can be recorded and listened to.

Call Statistics

  • Enable Call Logging And Statistics: This should be enabled to ensure calls are logged and statistics recorded.
  • Call Monitor Shift Reset Times: Only used for testing the old call monitoring software.
  • Call Monitor Ignore Short Missed Calls: Set how long a call can ring for before it is classed as a missed call.

To access the advanced settings:

  1. Click on the Advanced Mode button.

  2. Click on the OK button on the pop-up message.

The greyed-out settings can then be accessed.

Caller ID

  • Enable Caller ID: Enable to show a customers caller ID and previous booking details when they call to place a booking.
  • Caller ID Address: Enter the IP address of the CLI machine.
  • Caller ID Port: Enter the Port number of the CLI machine.
  • Booking Alert Mode: Select if current or previous bookings should show on the booking form when a customer calls.
  • Booking Alert Events: Enable to display caller ID event alerts.
    • Call Answered: Enable to display a customers Caller ID records when the call is answered.
    • Call Transferred: Enable to display a customers Caller ID records when the call is transferred.
  • Caller ID Booking Fields: Select which booking fields should be attached to the caller ID when placing a booking.
  • Called IDs: Click to add caller IDs for your company.
  • CLI Default Booking Mode: Select ON for both landlines and mobiles to ensure CLI records are saved for both sources.
  • Maximum CLI Records Per Phone Number: Set the maximum number of CLI records to display per phone number.
  • Minimum Valid Phone Number Length: Set the minimum length for valid phone numbers.
  • Local Area Code: Set your company number local area code.
