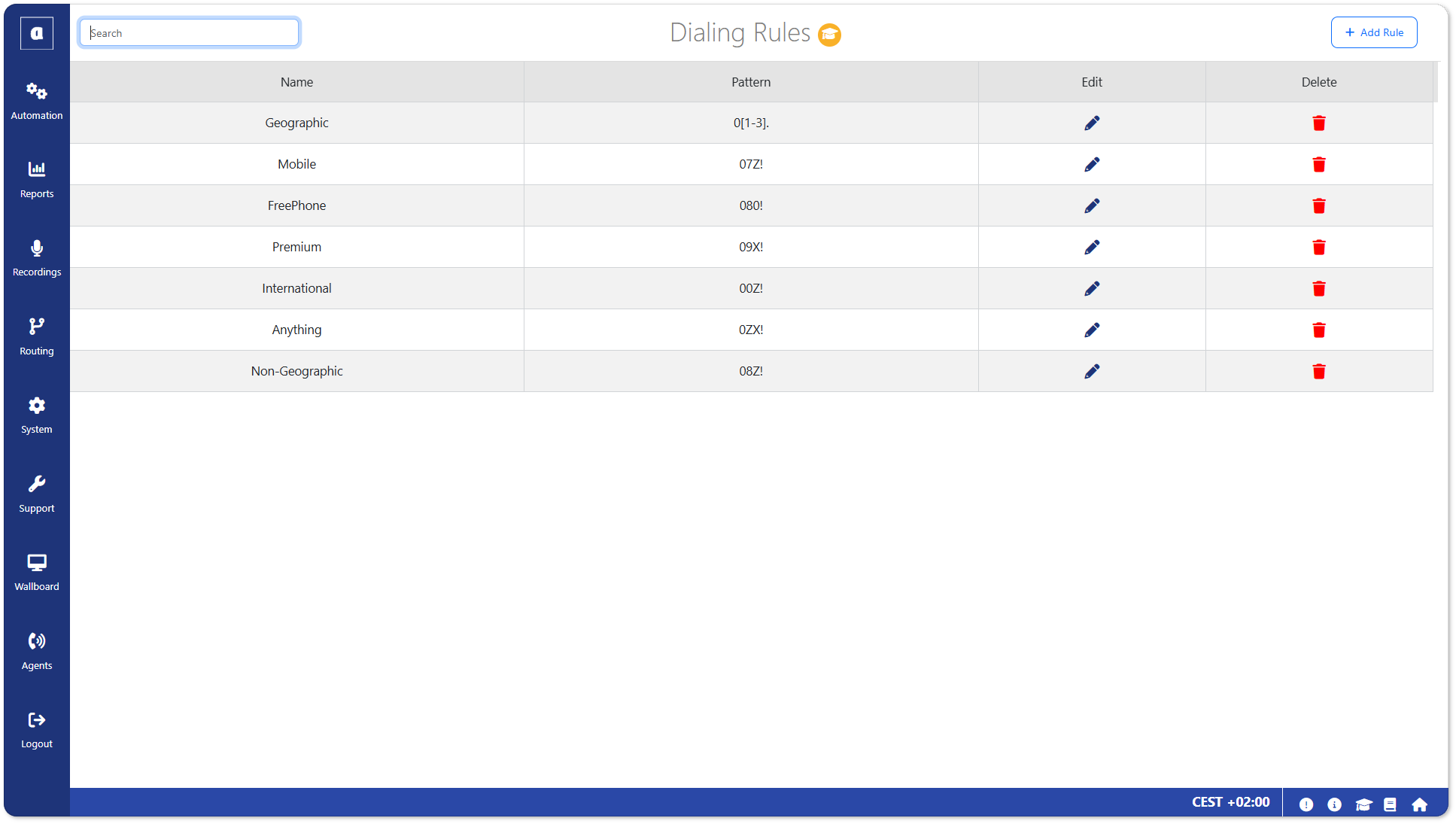

The Dialling Rules screen is used to determine which numbers the system can dial out to.

To access this screen:

1. Click on Dialling Rules from the Routing menu.



Add a rule

To add a new dialling rule:

1. Click on Add Rule in the top-right.

2. Configure your rule settings.

3. Then click Save.

• Dialling Rule:
  • Name: Enter a unique name for the dialling rule.
  • Dialling Pattern: Enter the dialling pattern (E.g. 0[1-3]X!).
  • Company DDI Pattern (Optional): Enter your company DDI pattern if required.
  • Prefix Removal: Set how many digits should be removed from the beginning of a prefix.
• Override Dialplan Trunks: This allows you to toggle if certain dialplan trunks should be enabled for the dialling rule.
